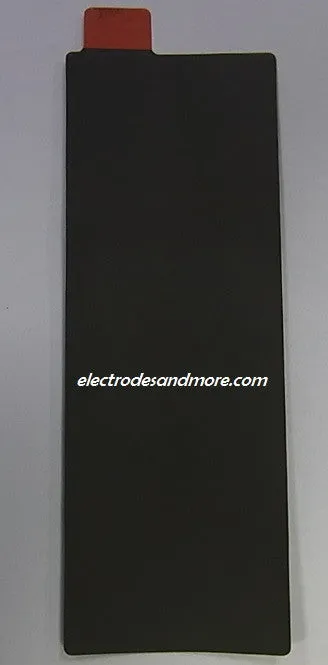

Graphite C battery electrode coated on Copper foil using production grade Graphite C material designed for Energy applications. This Graphite C electrode is optimized for energy applications. Graphite C electrode and the material was manufactured in the actual electrode production line. Each electrode have a width of 41 mm and length of 119 mm.
- Chemical formula: C
- Nominal Voltage: 0.10V vs Li
- Surface Density: 0965 x 10 -4g/mm2
- Press Density:1.55g/cm3
- Nominal Capacity at 0.05C: 340 mA/g
- Iron Content < 20 ppm
- Color: Black
- Shelf life: 12 months
- Storage: Dry atmosphere
- Active material surface area: 1 to 1.8 m2/g (BET)
